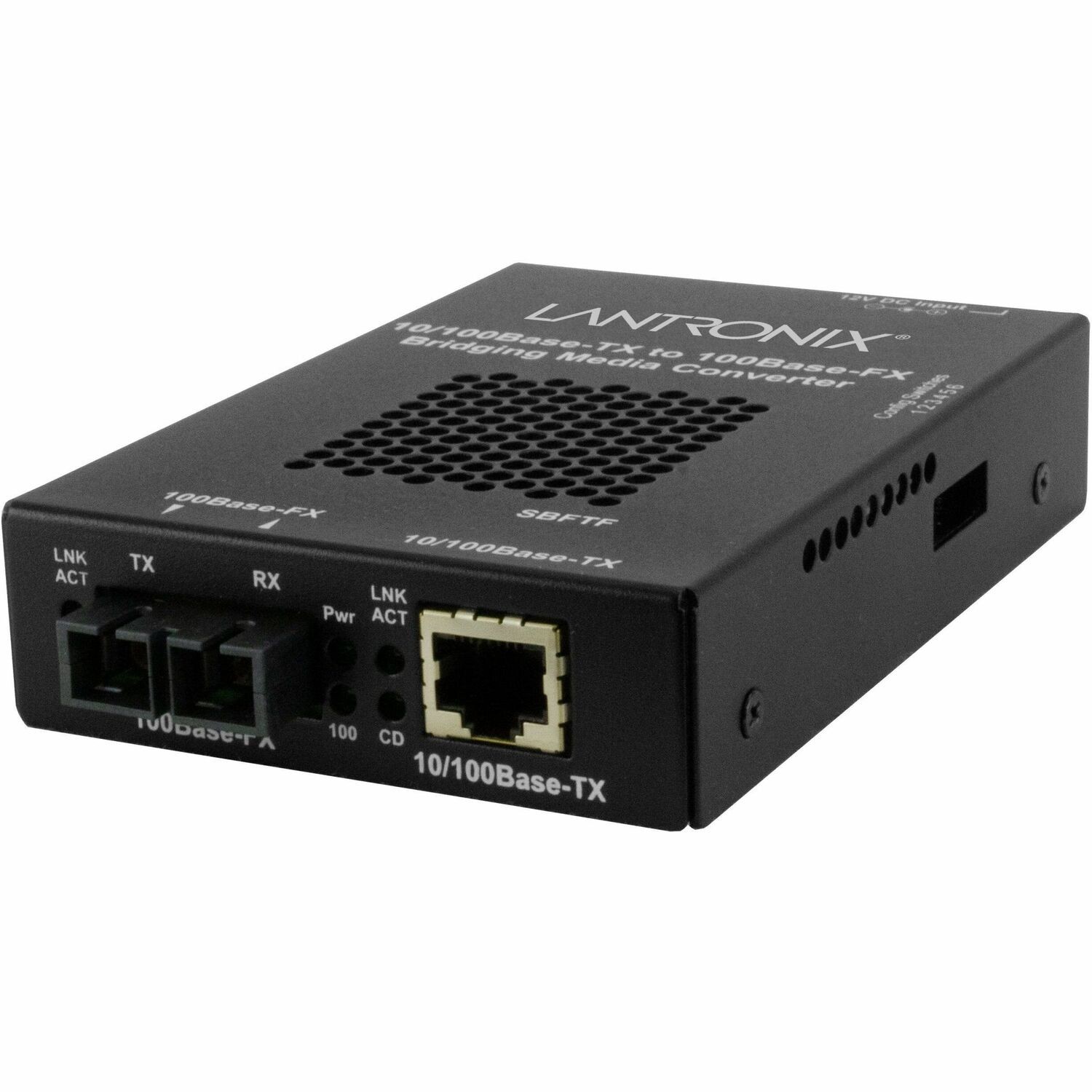

Stand-alone Fast Ethernet Media and Rate Converter
10/100Base-TX to 100Base-FX
The SBFTF Series is a that provides an interface between 10/100Base-TX ports and 100Base-FX ports, allowing users to integrate fiber optic cabling into 10/100 copper environments. Operating at Layer 2, the data link layer, this converter not only converts copper to fiber, it also provides rate conversion allowing legacy 10Base-T copper devices to connect to 100Base-FX fiber.
- General Information
- Manufacturer
- Lantronix, Inc
- Manufacturer Website Address
- http://www.lantronix.com
- Brand Name
- Lantronix
- Product Series
- SBFTF
- Product Type
- Transceiver/Media Converter
- Warranty
- Limited Warranty
- Lifetime
- Interfaces/Ports
- Total Number of Ports
- 2
- Network (RJ-45)
- Yes
- Number of Network (RJ-45) Ports
- 1
- Number of SC Ports
- 1
- Media & Performance
- Media Type Supported
- Optical Fiber
- Twisted Pair
- Fiber Mode Supported
- Multi-mode
- Fiber Optic Cable Wavelength
- 1300 nm
- Maximum Data Transfer Rate
- 100 Mbit/s
- Maximum Distance Supported
- 2 km
- Network & Communication
- Ethernet Technology
- Fast Ethernet
- Network Technology
- 100Base-FX
- 10/100Base-TX
- Power Description
- Power Source
- AC/DC
- Input Voltage
- 12 V DC
- Physical Characteristics
- Form Factor
- Wall Mountable
- DIN Rail Mountable
- Rack-mountable
- Standalone
- Shelf Mount
- Height
- 1"
- Width
- 3.3"
- Depth
- 4.8"
- Weight (Approximate)
- 2 lb
- Miscellaneous
- Package Contents
- SBFTF1013-105 Transceiver/Media Converter
- Power Supply - North America
- Application/Usage
- Data
- Network
- Additional Information
- 10/100Base-TX (RJ-45) [100 m/328 ft.] to 100Base-FX 1300nm multimode (SC) [2 km/1.2 mi.] Link Budget: 11.0 dB
- Certifications & Standards
- Safety: Wall Mount Power Supply: UL Listed; FCC Class A, VCCI Class 1, CISPR22/EN55022 Class A, EN55024, EN61000, CE Mark
- Environmentally Friendly
- Yes
- Environmental Compliance
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
- TAA Compliant
- Yes
- NDAA Compliant
- Yes
